North/East Grid Generator

Do you ever get tired of the redundant task of creating a Northing/Easting grid for your drawings in AutoCAD? Here's a solution that will reduce this pain staking task to a single command which executes in less than a minute.

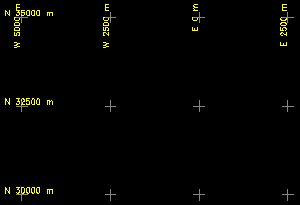

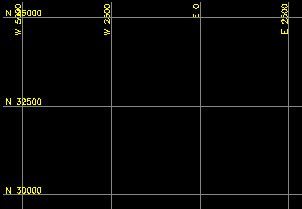

NorthEast Grid Ticks NorthEast Grid Lines

Samples of (a) Grid of Ticks and (b) Grid of Lines.
 North/East Grid automatically creates grid labels.
 Negative coordinates are assumed to be West or South.

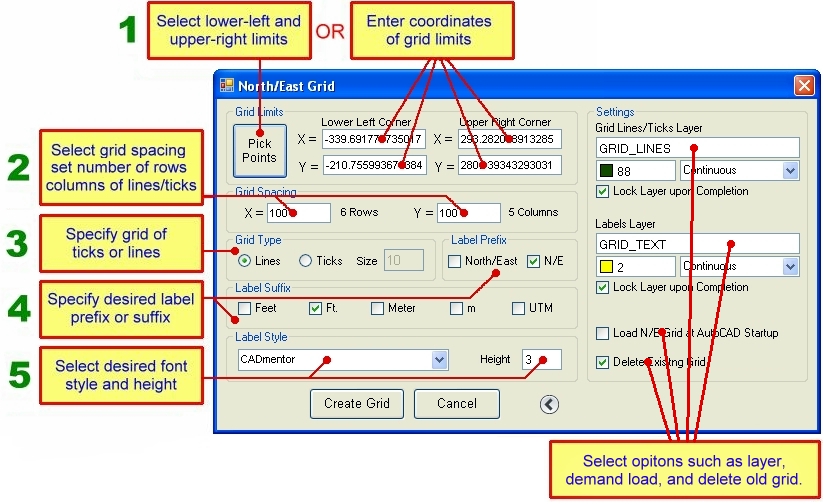

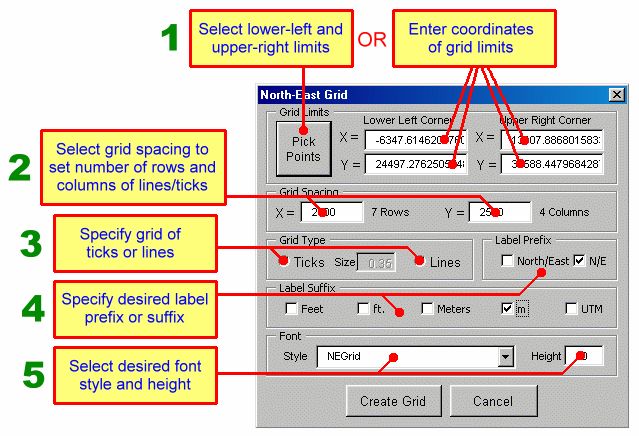

Let's have a look at the North/East Grid Generator's interface dialog. Just 5 steps (as depicted below), and hit the "Create Grid" button, it's as easy as that.

Dialog Box

Version 2.0 includes a "Delete old grid" feature which is really handy when changing grid parameters. CADmentor.com is proud to offer time saving tools for Computer Aided Drafting (CAD) users. Engineers, designers, and draftsman in the civil/structural engineering industry can find helpful AutoCAD macro programs to increase productivity. We have a selection of unique and powerful tools available for CAD users to download.

Version Information

Program Name: North/East Grid Generator
Application Type: Plug-in and VBA
Distribution Format: ZIP file (438 kb)
Last Updated: May 15, 2011
AutoCAD Version: AutoCAD 2000 or Later *
Current Version: 2.0

* VBA version included for AutoCAD 2009 (and earlier)



Download Now...

Download Now...

Only $12.95 u.s.





Compatible

This download contains a .NET compiled DLL plug-in specifically designed for AutoCAD. The demand load feature allows North-East Grid to automatically load every time AutoCAD starts, making it a easy to use addition to the normal AutoCAD command set. Installation is a breeze using a windows setup program. This download also contains a VBA version (for AutoCAD 2009 and earlier). The use of AutoCAD plug-ins requires workstation administrative privileges.
